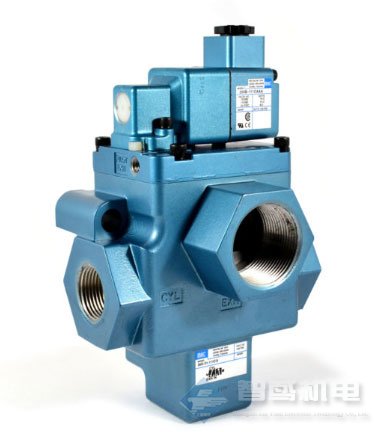

MAC三通阀58系列(图)-美国MAC电磁阀58D-51-RA

MAC 58系列是由我们的200系列引导的三通平衡滑阀(这意味着这个大型三通阀也可以订购200系列危险位置版本作为飞行员-给它相同的标准)。这是一种用途极为广泛的阀门：1。它可以转换成真空使用。2.只需旋转先导阀和主阀体之间的功能板，即可将其从常闭功能更改为常开功能。3.它也可以通过拆下电磁阀先导组件转换为远程气动阀-仅举几例。

The MAC 58 Series is a 3-way balanced spool valve piloted by our 200 series (which means this large 3-way valve can also be ordered with the 200 series Hazardous Location version as a pilot – giving it the same standard). This is an extremely versatile valve: 1. It can be converted for use in vacuum. 2. It can be changed from a Normally Closed function to a Normally Open function by simply rotating a function plate between the pilot and the main valve bodies. 3. It can also be converted to a remote air operated valve by removing the solenoid pilot assembly – just to name a few.

MAC三通阀58系列(图)技术参数：

Cv(比较大)：26

端口尺寸：1“-1 1/2”

配置：单独内联
