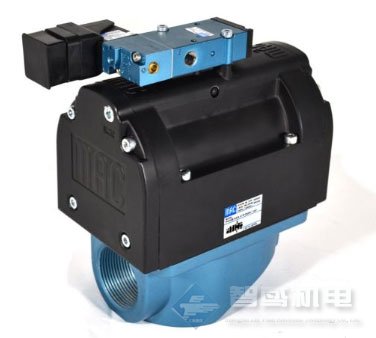

MAC**脉冲阀(图)-美国MAC脉冲阀PV03 PV09

MAC**脉冲阀系列的开发旨在取代现有的隔膜式技术，并在工业应用中创造出更坚固可靠的阀门解决方案。MAC脉冲阀是替代现有隔膜技术的理想选择，例如反向喷射袋和集尘器，气动输送和散装物料处理。

MAC**脉冲阀可以采用以下两种先导配置中的一种进行订购：Integral Solenoid试验结合快速，可重复的脉冲和手动操作员，而我们的Remote Bleed版本可提高危险场所的性能和可靠性。MAC脉冲阀的主体采用粘合阀芯技术，具有超越现有隔膜技术的卓越可靠性。检查的蓄能器和带有记忆弹簧的主阀芯用于确保在空气供应不足的情况下换回原位。一系列转接板也已被释放，以直接插入现有的隔膜脉冲阀，而不会干扰现有的管道。

目前有(3)尺寸; PV03，用于¾“和1”应用，PV06用于1½“应用，PV09用于2”和2½“应用。

The MAC patented Pulse Valve series was developed to replace current diaphragm style technology and create a more robust and reliable valve solution in industrial applications. MAC Pulse Valves are ideal to replace existing diaphragm technology in applications such as reverse jet bag houses and dust collectors, pneumatic conveying and bulk material handling.

The MAC patented Pulse Valve can be ordered in one of two pilot configurations: The Integral Solenoid pilot combines fast, repeatable pulses with the addition of a Manual Operator, while our Remote Bleed version to improve performance and reliability in Hazardous Locations. The main body of the MAC Pulse Valve utilizes bonded spool technology for superior reliability beyond existing diaphragm technology. A checked accumulator and a main spool with memory spring are used to ensure a shift back to the home position, for times when air supply may not be adequate. A line of adapter plates has also been released to replace existing diaphragm pulse valves with a direct drop-in, without disturbing existing plumbing.

It is currently available in (3) sizes; the PV03, for ¾” and 1” applications and the PV06, for 1 ½” applications, and PV09 for 2″ and 2 ½” applications.

MAC脉冲阀PV03

MAC脉冲阀PV06

MAC脉冲阀PV09
