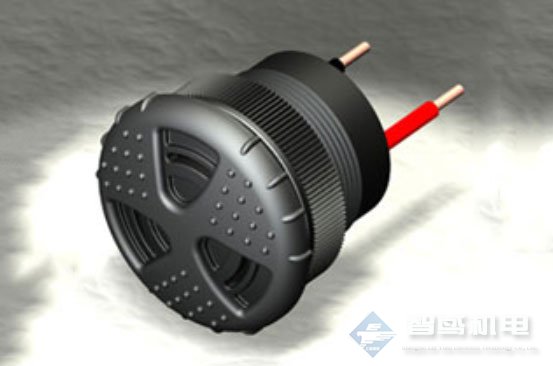

Floyd Bell报警器-美国Floyd Bell蜂鸣器TXC-V86-515-W

Floyd Bell Inc.生产和销售世界上技术比较**，质量比较高，耐用且免维护的声音报警器。Floyd Bell警报通常用作各种情况下的声音警报。由于能够自定义我们的警报以适应任何应用程序，因此几乎每天都不会听到我们的警报。弗洛伊德贝尔警报器常见于汽车，机场金属探测器，电梯，校车，法式炸锅，叉车和高尔夫球车，仅举几例。

Turbo Extra Loud Continuous; Panel Mount with Volume Control Case and Wires Termination

Mounting:Panel Mount with Volume Control

Operating Mode:Extra Loud Continuous

Operating Voltage:5-15 Vdc

Operating Frequency:

Typical Operating Current:10 mA at 5 Vdc

50 mA at 15 Vdc

Typical Sound Pressure:92±5 dB(A), at 5 Vdc, at 24 inches (61 cm), at 25°C

103±5 dB(A), at 15 Vdc, at 24 inches (61 cm), at 25°C

Termination:Wires

Termination Strength:Pull test with a maximum of 22 pounds (10 kg) load

Operating Temperature:-20_C to +65_C

Storage Temperature:-40_C to +85_C

Surge Voltage:20% over maximum rated voltage for less than 5 minutes

Reverse Voltage Protection:To the maximum operating voltage

Construction Materials:

Internal Circuit- Audio-oscillator and piezoelectric driver

Potting- 2 parts epoxy resin or silicone, black

Diaphragm- Stainless Steel 304

Gasket:

Environmental Durability:ASTM B117 Certified - Withstands exposure to salt spray for 300 hours

IP 68 Certified - Withstands water submergence and dust exposure

Humidity- 95% relative humidity at +40_C continuously for 100 hours.

Vibration- Withstands vibration between 0 and 55 Hz. on all axes.

Life Expectancy:10 years under normal operating conditions.

Warranty:For a period of two years from the date of manufacture under normal operating conditions.
