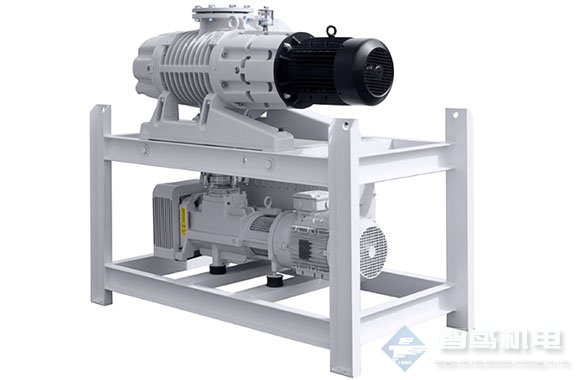

These Oerlikon Leybold RUTA vacuum pump systems include a frame mounted WAU-2001 Root's blower with SOGEVAC SV300B single stage rotary vane backing pump, have a large 1020 cfm pumping speed with an excellent ultimate pressure of 6x10-3 Torr. These are standard industrial Root's blower packages prepared for hydrocarbon vacuum pump oil and driven by an air cooled motor. The WAU pumps are easy to operate, include a pressure differential valve that allows them to be started at the same time as the roughing pump. These Oerlikon Leybold RUTA vacuum pump packages have ISO-160 inlet flange, 2" NPT exhaust flange, requires 13.0 liters of vacuum pump oil, weigh approximately 1631 lbs, and operates on 3-Phase 200-230, 440-480 VAC input power.

瑞士Oerlikon(欧瑞康)真空泵派件/排气过滤器SV300BStandard Equipment：

Exhaust Filter

Oil Collection Pan (On Frame Mounted Systems Only)

Manually Operated Gas Ballast

Crane Eyes (On Frame Mounted Systems Only)

Floor Mounting (On Frame Mounted Systems Only)

The oil is supplied in the pump (Hydrocarbon Systems Only)

CE Approval

瑞士Oerlikon(欧瑞康)真空泵派件/排气过滤器SV300BOptional Accessories：

Oil Filtration

24 VDC Gas Ballast Valve

Sound Proofing Box

Vibration Absorbers

Castors

Different types of floor mounts

Oil drain valve on each pump

Condensation Trapping Systems

Inlet Filters for Dust or Particulate

Exhaust filter with oil return line

Electric Control Systems
