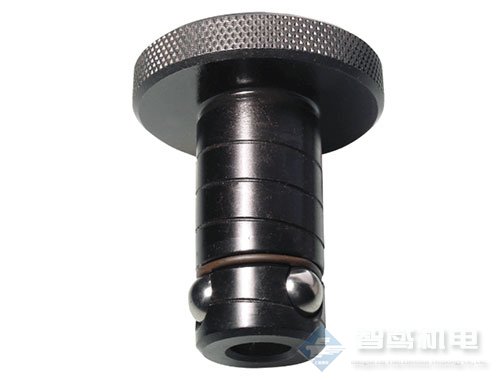

美国CarrLock工件夹具/夹具基座CL-50-CLC-1.00

只需转动六角扳手，CarrLock®系统就可以同时精确定位和夹紧。非常适合在底板上安装快换工具。每个安装点由三个部件组成：(1)CarrLock®夹具，带有精确接地的刀柄; (2)顶板上的CarrLock®衬套衬套或间隙孔; (3)底板上的CarrLock®接收器衬套。这种紧凑的组件提供了相当大的压紧力，以及令人难以置信的+/-。0005“重复性。

The Carr Lock® System allows accurately locating and clamping at the same time, with just the turn of a hex wrench. Ideal for mounting quick-change tooling on a subplate. Each mounting point consists of three components: (1) a Carr Lock® Clamp, with a precisely ground shank; (2) a Carr Lock® Liner Bushing or clearance hole in the top plate; (3) a Carr Lock® Receiver Bushing in the subplate. This compact assembly provides considerable holddown force, together with an incredible +/-.0005" repeatability. Made in USA.

提供以下刀柄直径，每种刀柄长度可选择不同的顶板厚度(英制和公制)：13毫米、16毫米、20毫米、25毫米、30毫米、35毫米、50毫米等。

每个安装点由三个部分组成：

(1)CarrLock®夹具，带有精确接地的柄

(2)CarrLock®衬垫衬套或顶板上的间隙孔

(3)CarrLock®接收器衬套在底板中
