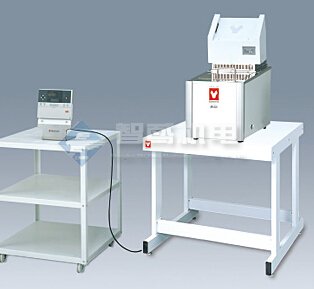

YAMATO精密恒温液浴槽BH401/501

YAMATO精密恒温液浴槽BH401/501
工作温度范围 (室温 + 15deg。C ~) 100deg。C 200deg。C
Temp调整精度 ±0.01deg。C
浴能力 13 L

YAMATO精密恒温液浴槽BH401/501 产品特点：
台式精密恒温恒湿浴
强大的循环泵可以执行更好的外部循环。
各种支助职能
循环泵流量是可更改的 10 个步骤
外部循环水温度。（闭合的型） 可以精确控制由固定的外部传感器。
控制面板是可移动与远程控制的通信电缆。（通信电缆是可选的）。

YAMATO精密恒温液浴槽BH401/501规格：

Model	BH401	BH501
Performance
Circulation Type	Water Jet Pump Circulation (Closed System Circulation)
Operating Temp. Range	Room Temp. +15 to 100deg.C	Room Temp. +15 to 200deg.C
Temp. Adjustment Accuracy	±0.01 (at 20deg.C)
Temp. Indication Unit	0.1deg.C
Circulation Pump	Water Jet Pump Circulation
Pump Max. Flow (50/60Hz)	14/15L/min.
Pump Max. Lift (50/60Hz)	2.8/3.4m
Heater	1kW	1.2kW
Surrounding Operation Temp. Range	5 to 30deg.C
Controller
Temp. Control System	PID Control by Micro Computer
Temp. Setting/Display	Digital Setting, LED Display, Fluorescent Display Tube Type Guide Display
Temp. Sensor	Pt Sensor, Pt100Ω A-class (for Temp. Control)+ K-thermocouple (for Overheat Prevention) Double Sensor
Timer	1min. to 99hrs. 59min., 100 to 999.9hrs.Timer/Time Changeable Function
Operation Function	Fixed Temp. Operation, Automatic Stop/Start Operation at Setting Time, Program Operation (Max. 99 steps, Repeating, Gradient Operation), Programming Automatic Start Operation, Temporary Operating-Stop Function.
Safety
Safety Countermeasures	Electric Leakage Breaker for Over Current Protection, Key Rock Function, Breakout Protection Function, Automatic Overheat Prevention, Independent Overheating Prevention
Other Function	Drain Cock, RS485 Communication Function, Temp. Output Terminal, Alarm Output Terminal, Calibration Off Set Function.
Standard
Water Bath Dimension	W239 x D299 x H200mm
Water Bath Capacity	13L
Effective Water Bath Dimension	W227 x D150 x H200mm (Frontage Corner R34)
External Dimension	W310 x D396 x H607mm (Water Bath Height)
Power Source	AC100V, 50/60Hz, 11A	AC100V, 50/60Hz, 13A
Weight	Approx. 20kg	Approx. 20kg
